UL 1007 – YMK

Product

UL 1007

Application

Internal wiring of electrical, electronic and medical equipment.

Product Description

Standard
UL, CUL AWMTR-64
Conductor
Solid , Strand and OS-1 either tinned or bare copper
Rating
UL 1007 80^oC 300V / UL1569 105^oC 300V
Flammability
UL VW-1, CUL FT1
Insulation
Heat resistant PVC which is RoHS Complied wire.
Usage
Uniform thickness of wire to ensure easy stripping and cutting Resistant to acids, oils, alkalines, moisyure and fungus

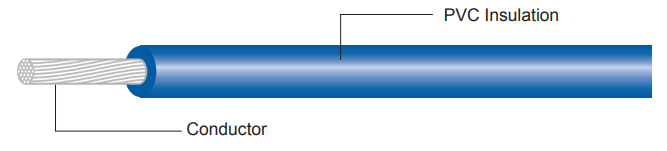

Construction

UL 1007

UL Style CUL Type	Conductor		Insulation Thickness	Overall Diameter Approx	Standard Put-Up		Conductor Resistance at 20^o C
UL Style CUL Type	(AWG)	(No./mm)	(mm)	(mm)	(ft/coil)	(M/coil)	(ohm/km)
UL 1569 UL 1007 AWM TR-64 (Stranded)	30	7/0.102	0.38	1.10	11500	3500	381.00
	28	7/0.127		1.20	11500	3500	239.00
	26	7/0.160		1.30	10000	3050	150.00
	24	11/0.160		1.40	2000	610	94.20
	22	17/0.160		1.60	2000	610	59.40
	20	21/0.180		1.80	2000	610	36.70
	18	34/0.180		2.10	2000	610	23.20
	18	26/0.253		2.40	2000	610	14.60
UL 1569 UL 1007 AWM TR-64 (OS-1)	26	7/0.160		1.30	2000	610	150.00
	24	7/0.203		1.45	2000	610	94.20
	22	7/0.253		1.60	2000	610	59.40
	20	7/0.320		1.80	2000	610	36.70
	18	7/0.404		2.10	2000	610	23.20
	16	7/0.488		2.30	2000	610	14.60
UL 1569 UL 1007 AWM TR-64 (Solid)	26	1/0.404		1.25	2000	610	143.00
	24	1/0.511		1.35	2000	610	89.30
	22	1/0.643		1.50	2000	610	56.40
	20	1/0.813		1.65	2000	610	35.20
	18	1/1.024		1.85	2000	610	22.20
	16	1/1.290		2.15	2000	610	14.00
