UL 1430 – YMK

Product

UL 1430

Application

Internal wiring of electrical, electronic and medical equipment and in appliances with the working high temperature

Product Description

Standard
UL, CUL Type REW
Conductor
Solid , Strand and OS-1 either tinned or bare copper
Rating
UL 1430 105^o C 300V / UL 1431 105^o C 600V
Flammability
UL VW-1, CUL FT1
Insulation
Heat resistant XLPVC which is cross-linked by electron beam machine and stable thermally
Usage
Uniform thickness of wire to ensure easy stripping and cutting Resistant to acids, oils, alkalines, moisyure and fungus which are excellent compared with normal PVC wire

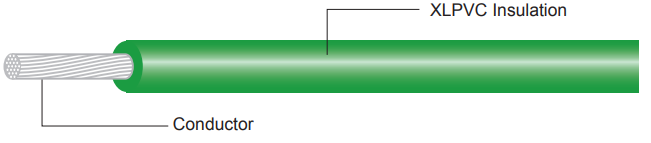

Construction

UL 1430

UL Style CUL Type	Conductor		Insulation Thickness	Overall Diameter Approx	Standard Put-Up		Conductor Resistance at 20^o C
UL Style CUL Type	(AWG)	(No./mm)	(mm)	(mm)	(ft/coil)	(M/coil)	(ohm/km)
UL 1430 TYPE REW (Standed)	30	7/0.102	0.39	1.10	11500	3050	381.00
	28	7/0.127		1.20	11500	3050	239.00
	26	7/0.160		1.30	2000	3050	150.00
	24	11/0.160		1.40	2000	610	94.20
	22	17/0.160		1.66	2000	610	59.40
	20	21/0.180		1.90	2000	610	36.70
	18	34/0.180		2.20	2000	610	23.20
	16	26/0.253		2.50	2000	610	14.60
UL 1431 TYPE REW Standed	30	7/0.102	0.76	1.90	2000	610	381.00
	28	7/0.127		2.00	2000	610	239.00
	26	7/0.160		2.10	2000	610	150.00
	24	11/0.160		2.20	2000	610	94.20
	22	17/0.160		2.35	2000	610	59.40
	20	21/0.180		2.55	2000	610	36.70
	18	34/0.180		2.80	2000	610	23.20
	16	26/0.253		3.10	2000	610	14.60
